Solid State logic

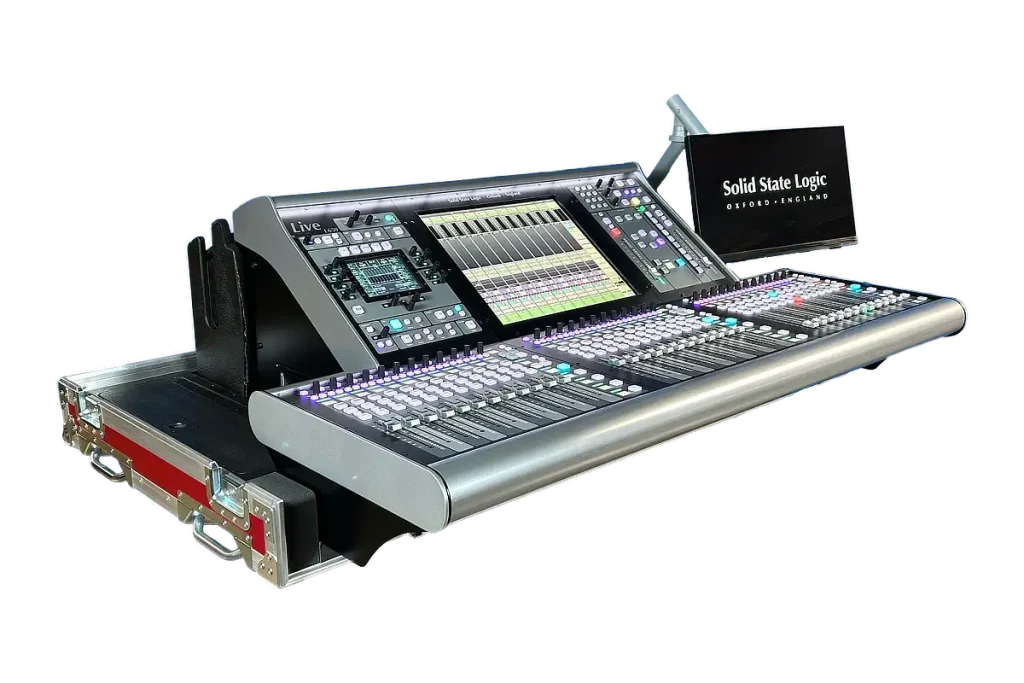

L650
Input Channels : 312
Stem Groups : 96
Auxes : 210
Masters : 32
Matrices : 32 Input x 36 Output Matrix which can be divided into 4 separate matrices
Local I/O : 16 Mic/Line I/O x 4 Stereo AES I/O
MADI (BNC) : 6 Coax, 2 Optical
Blacklight II : One Redundant Pair of Multimode OpticalCON Connection
Local Dante @ 96kHz: 32 x 32 Redundant Pair

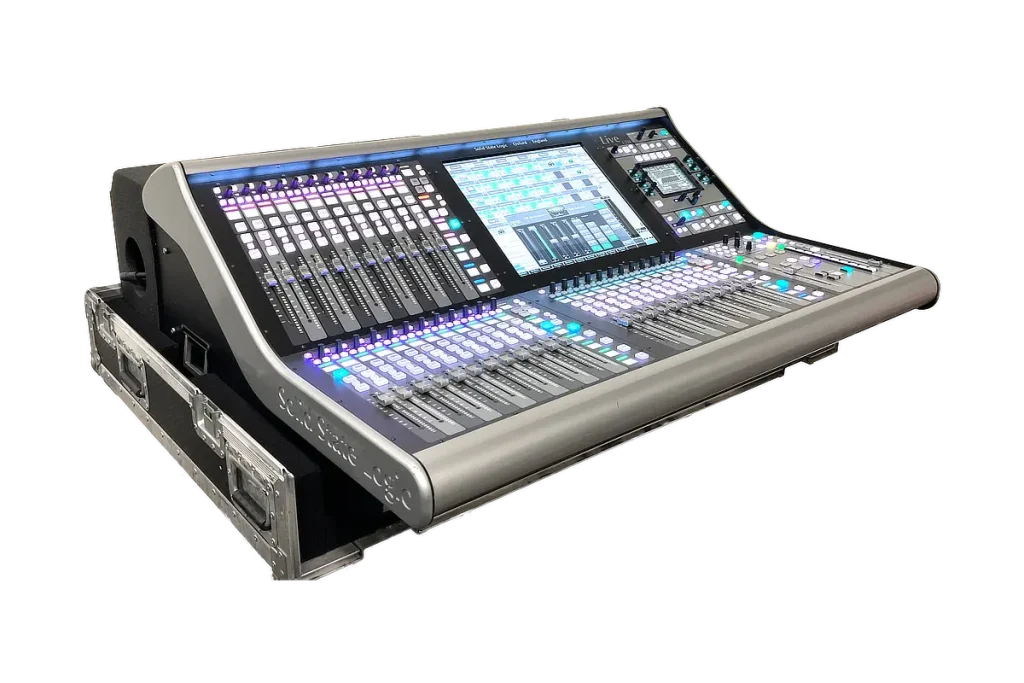

L550+
Input Channels : 288
Stem Groups : 84
Auxes : 204
Masters : 30
Matrices : 32 Input x 36 Output Matrix which can be divided into 4 separate matrices
Local I/O : 32 Mic/Line I/O x 8 Stereo AES I/O
MADI (BNC) : 12 Coax, 4 Optical
Blacklight II : One Redundant Pair of Multimode OpticalCON Connection
Local Dante @ 96kHz : 32 x 32 Redundant Pair

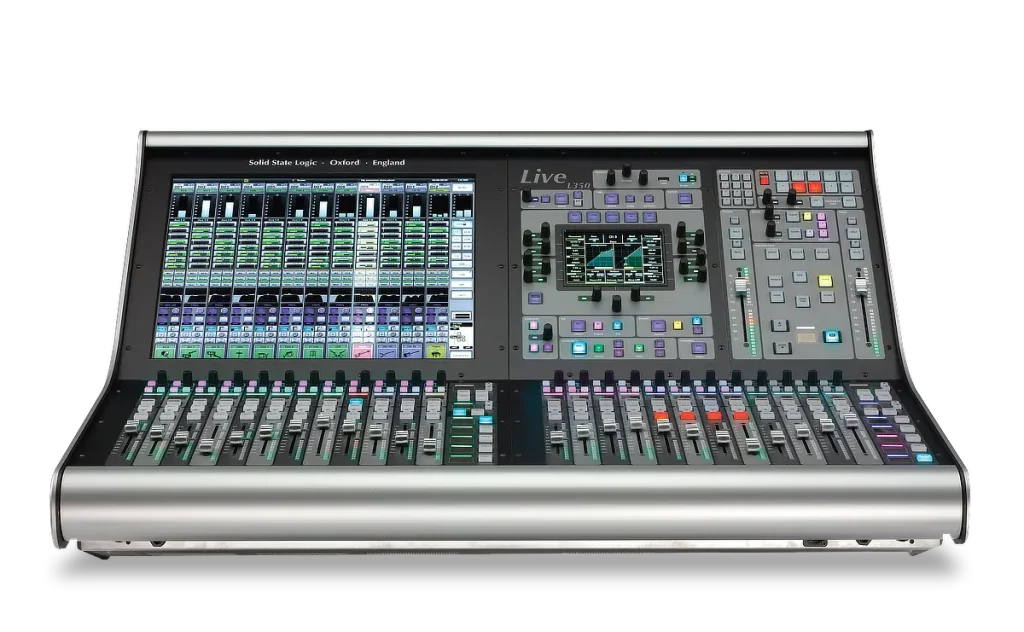

L350+
Input Channels : 216
Stem Groups : 48
Auxes : 132
Masters : 18
Matrices : 32 Input x 36 Output Matrix which can be divided into 4 separate matrices
Local I/O : 16 Mic/Line I/O x 4 Stereo AES I/O
MADI (BNC) : 6 Coax, 2 Optical
Blacklight II : One Redundant Pair of Multimode OpticalCON Connection
Local Dante @ 96kHz : 32 x 32 Redundant Pair

Blacklight II Concentrator
MADI I/O Device that can connect up to eight ML 32.32 Analog and D 32.32 AES/EBU stageboxes and up to two SSL Live consoles.
8 x Redundant Pairs of coaxial connections

ML 32.32 MADI Analog Stagebox
Inputs : 32
Outputs: 32
MADI: 2 x Redundant Pairs of Coaxial Connections
Optional: 32 Split Analog Outputs on the rear panel
