DiGiCo

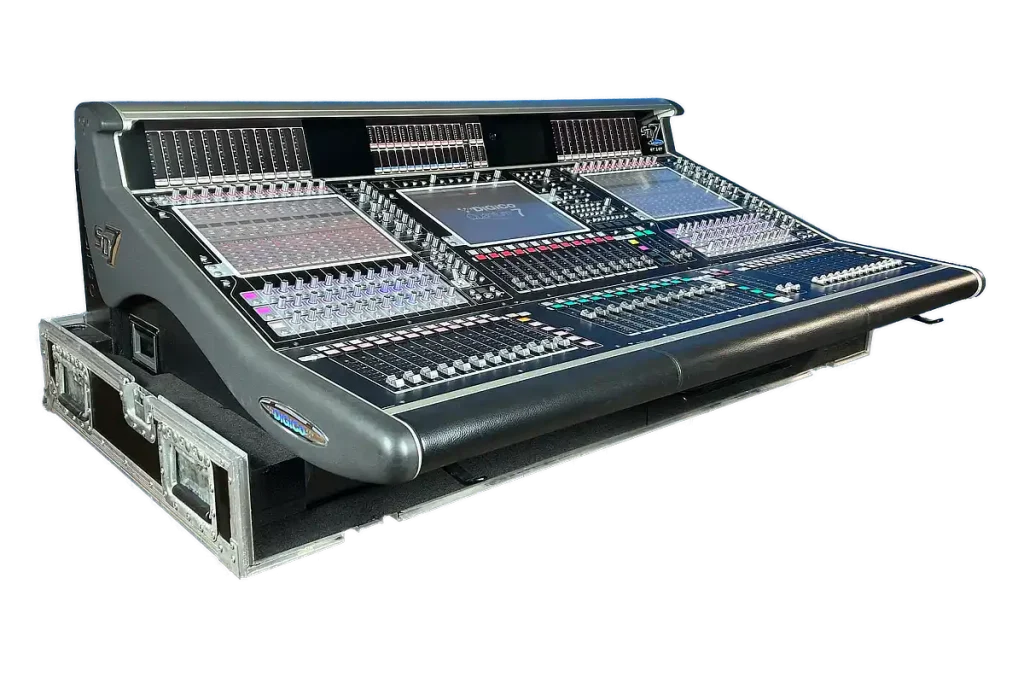

Quantum 7
Input Channels : 256
Aux / Sub Group Busses : 128
Matrix : 48 x 48
Local I/O : 12 Mic/Line I/O x 6 Stereo AES I/O
MADI (BNC) : 8 Interfaces@48kHz, 4 Interfaces@96kHz
DMI Slots : 2
Waves Port
Fiber Optics HMA Connection
Quantum 5
Input Channels : 256
Aux / Sub Group Busses : 128
Matrix : 36 x 36
Local I/O : 8 Mic/Line I/O x 4 Stereo AES I/O
MADI (BNC) : 8 Interfaces@48kHz, 4 Interfaces@96kHz
DMI Slots : 2
Waves Port
Fiber Optics HMA Connection

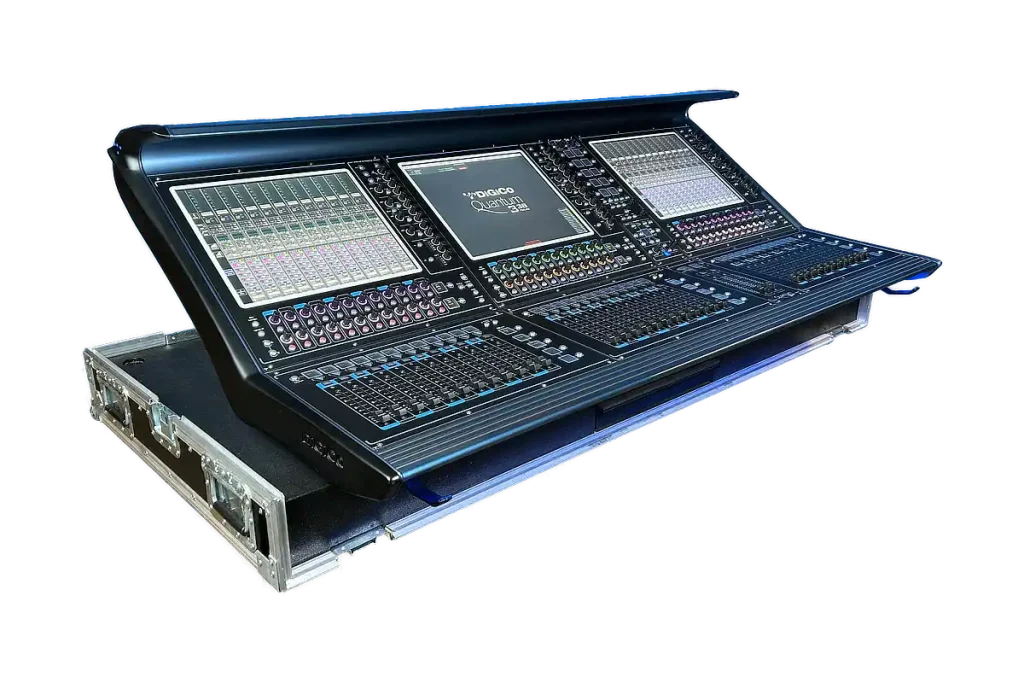

Quantum 338 Pulse
Input Channels : 156
Aux / Sub Group Busses : 72
Matrix : 24 x 24
Local I/O : 8 Mic/Line I/O x 4 Stereo AES I/O
MADI (BNC) : 6 Interfaces@48kHz, 3 Interfaces@96kHz
DMI Slots : 2
Waves Port
Fiber Optics HMA Connection

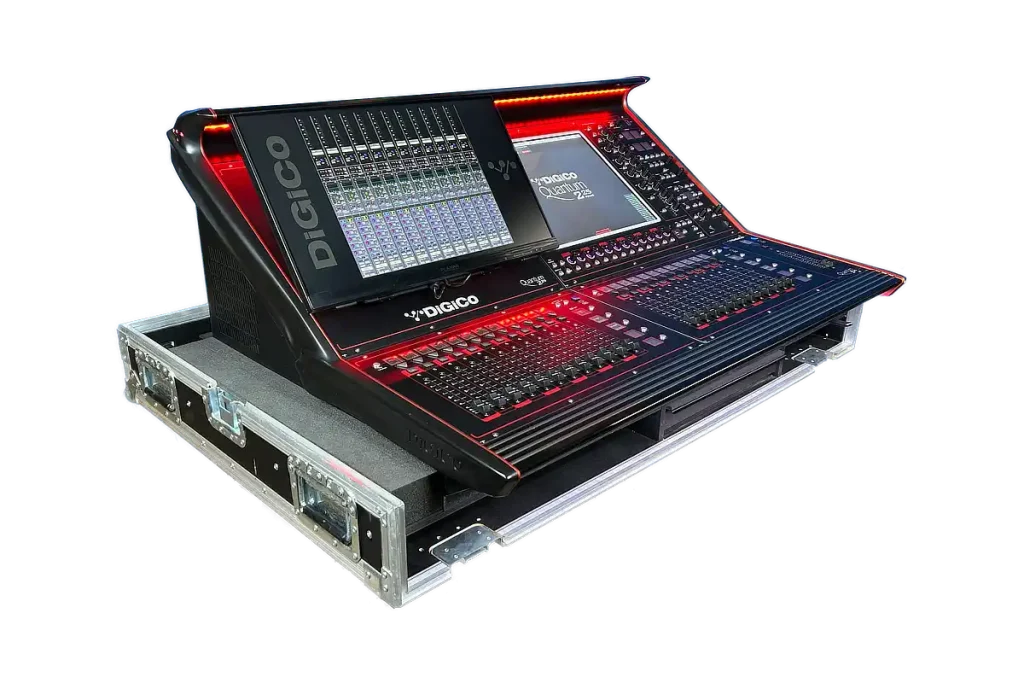

Quantum 225 Pulse
Input Channels : 96
Aux / Sub Group Busses : 48
Matrix : 12 x 12
Local I/O : 8 Mic/Line I/O x 2 Stereo AES I/O
MADI (BNC) : 4 Interfaces@48kHz, 2 Interfaces@96kHz
DMI Slots : 2
Waves Port
Fiber Optics HMA Connection
SD 10
Input Channels :144
Aux / Sub Group Busses : 64
Matrix : 24 x 24
Local I/O : 8 Mic/Line I/O x 4 Stereo AES I/O
MADI (BNC) : 2 Redundant Interfaces
Waves Port
Fiber Optics HMA Connection

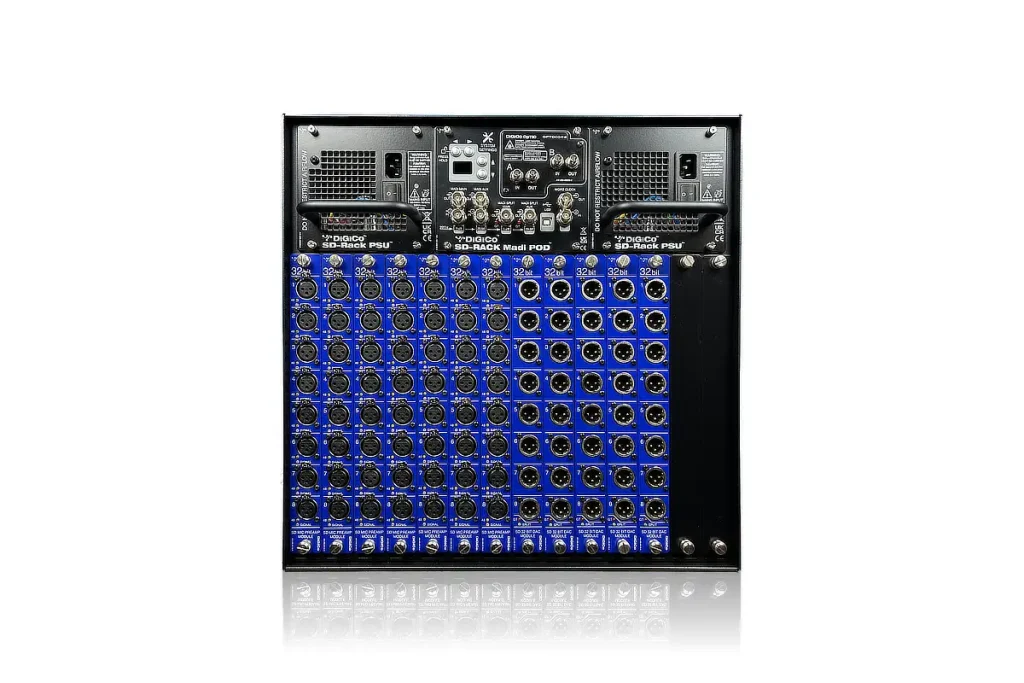

SD-Rack
ST or HMA Connection
Input Slots : 7 x 8 Channel
Output Slots : 7 x 8 Channel
Compatible with 32-bit SD Cards

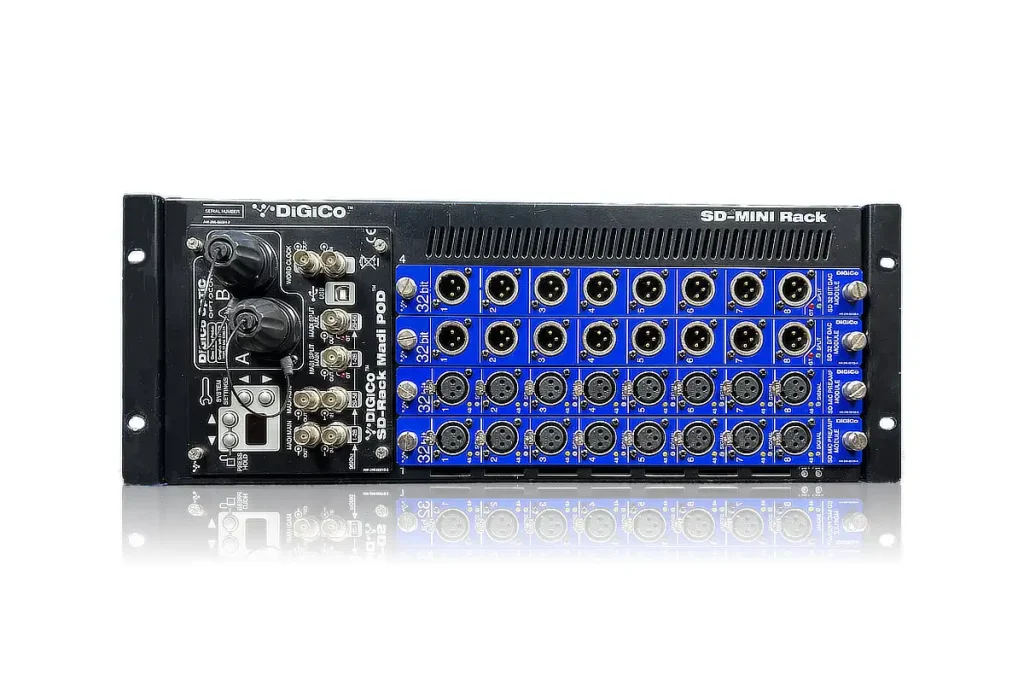

SD-MiNi Rack
ST or HMA Connection
I/O Slots : 4 x 8 Channel
Compatible with 32-bit SD Cards
